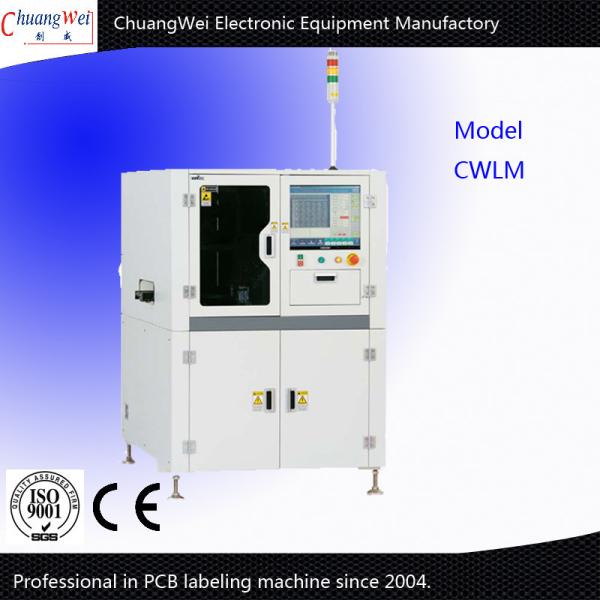

PCB Labeling Machine with High Precision Robot Control & One Year Warranty Specification:
| position accuracy | ±0.05mm |
| labelling accuracy | ±0.1mm |
| Controlling axis | three axis(X,Y,Z,U) |
| nozzles | 1 |
| feeder | 1 |
| stroke | customized |
| Maximum driving speed | X,Y:1000mm/sec,Z:500mm/sec |
| Maximum label | can be customized |
| labelling speed | ＜2second/PC(can be customized) |
| picking tags way | vacuum absorb |
| vacuum test | SMC vacuum degree test |
| repeat label accuracy | 0.1mm |
| operating mode | TFT Monitor+Keyboard+Mouse |
| Transmission mode | left to right |
| PCB | load/unload online |
| double CCD | ＜1000sm |
| U rotation | 360’ angle rotation |
Composition and parameters
| 1 Hardware | |
| Screw Guide | HWIN import linear Screw Guide |
| leadscrew | HWIN import grinding leadscrew |
| Motor | PansomicMINS‐A5T/YIXIN servo drive |
| motion control card | HFC PCI9014 |
| adapter card | HT‐B01 |
| LCD | |
| 2 Software | |
| control system | Independent R&D servo drive system |
| Program | online |
Features:
1. Intelligent control, automatic correction MARK point positioning systems, mobile real‐time display and analog path trace route, display a glance, automatic alignment correction, higher labeling accuracy.
2. Configuring high‐pixel CCD zoom lens, an auxiliary program Teach‐camera editing function, higher precision and more accurate, clearer images. Easy to edit & modify block programs and single‐step program.
3. Transparent cover design, emergency button could avoid accident to ensure safe operating.
4. Flexible application can pick off the production or assembly line production, production site layout is simple.
5. Powerful, has fault alarm function, production counting function, parameter setting protection function, convenient production and management.
6. Simple adjustment, adjust label position freely for 10 setting positions. It is simple to change different PCBs to save time.
Our best service
1. Engineers available to service machinery oversea.
Engineers are available to be sent to freign countries to do machinery training and offer technical support.
2. One year warranty for the machines except accessories.
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.
3..Effective customer service.
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers
4. Mature technique & forerunner to process makes high quality machinery.
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine
Our R&D team continuously upgrade the existing machines to meet the market development trend
CE approval
